What is the MAP sensor?

What is the MAP sensor?

The automotive world is full of mechanical and electronic components that are essential for optimal vehicle operation. Among these components, the manifold air pressure sensor, often referred to as the MAP sensor, plays a key role in the engine management system. The MAP or boost pressure sensor uses its resistors to measure intake air pressure. It is most commonly found on turbocharged diesel vehicles, but can also be found on some gasoline vehicles. The sensor sends signals to the engine control unit, which uses them to adjust fuel injection.

Definition of the MAP sensor

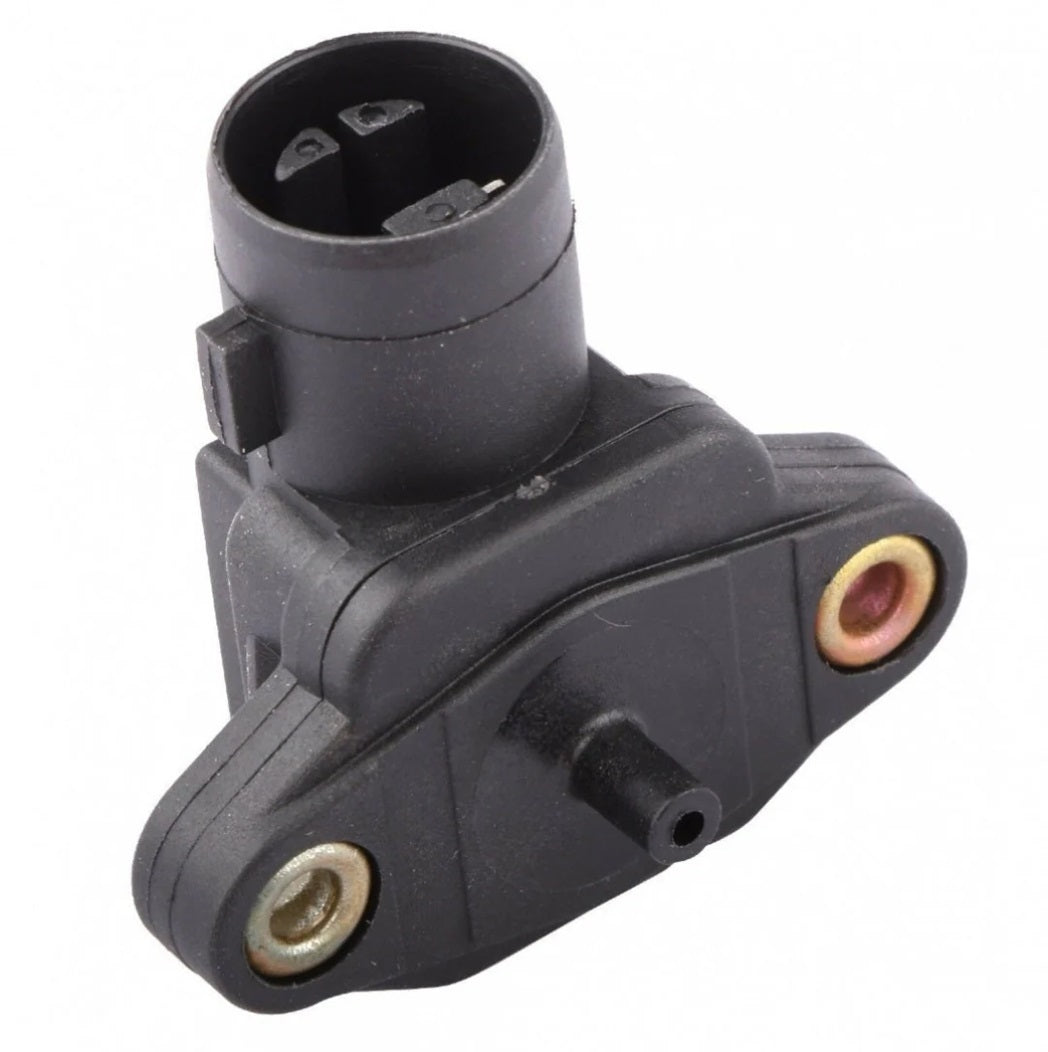

The Manifold Absolute Pressure (MAP) sensor is an electronic component found in many vehicles, especially those with turbochargers. By compressing air before it enters the engine, the turbo improves combustion and increases the vehicle's power output. This is where the MAP sensor comes in, measuring intake air pressure and adjusting fuel injection accordingly. Its main function is to measure the air intake pressure in the engine and transmit this information to the engine control unit (ECU). The ECU uses this data to adjust fuel injection to optimize air-fuel mixture and engine combustion.

Where is the MAP sensor located?

The MAP sensor measures the air pressure in the vehicle's intake system. It's located inside the engine at the air intake. You'll find it in or near the intake manifold, connected to the manifold by a hose.

Where is the MAP sensor located

How does a boost sensor work?

They consist of small electrical components that are connected to the vehicle's Engine Control Module (ECM). When your vehicle is started, the MAP sensor begins measuring intake manifold pressure. It then converts these readings into electrical signals that the MAP sensor sends to your vehicle's ECM.

When your vehicle is idling, the intake manifold is at minimum pressure. When you depress the accelerator, the manifold pressure increases. The task of the MAP sensor is to sense these pressure changes and translate them into electrical signals. An increase in pressure means that the injectors must inject more fuel into the engine's combustion chamber. The MAP sensor detects pressure changes in the intake manifold so that the injectors deliver the correct amount of fuel.

How do I diagnose a faulty MAP sensor?

Several symptoms can indicate a problem with the MAP sensor:

  • Excessive fuel consumption
  • Decreased engine performance
  • Difficulty starting
  • Stalling and misfiring
  • Engine light on

However, these symptoms may also indicate a problem elsewhere in the fuel injection system. Therefore, it is advisable to perform an auto diagnostic to check the operation of the MAP sensor. This can be done using a vehicle diagnostic tool that can read the trouble codes generated by the engine management system.

How do I clean a MAP sensor?

Cleaning a MAP sensor is sometimes necessary when it becomes too clogged and interferes with your car's fuel injection. You'll need to access it, disassemble it, and clean it with a special product or White Spirit. Be careful not to disassemble the car's turbo.

Step 1: Remove the MAP sensor

Check the location of the MAP sensor in your owner's manual or your vehicle's technical manual (RTA). It's usually located in or near the intake manifold. Once you've located it, disassemble it by removing the connector and its plug. Then unscrew the screws holding the MAP sensor in place and remove it.

Step 2: Clean the MAP Sensor

Once the MAP sensor is removed, you can clean it. We recommend using a product specifically designed for cleaning electrical components. You can also use brake cleaner.

Step 3: Reassemble the MAP Sensor

Finally, reassemble your MAP sensor in the reverse order of disassembly. Reposition the boost sensor, reconnect its connector, and finally replace the engine cover. Be sure your engine runs smoothly after the cleaning process is complete.

MAP Sensor Maintenance and Replacement

Cleaning the MAP Sensor

A MAP sensor can become clogged over time and interfere with your vehicle's fuel injection. Therefore, it is sometimes necessary to clean this component. You can use a special product or White Spirit. Leave the turbo in place.

Replacing the MAP Sensor

If your MAP sensor is defective, it will need to be replaced. The price of a MAP sensor can vary considerably depending on the model and type of vehicle.

The manifold pressure sensor, or MAP sensor, is an essential component that plays a critical role in your vehicle's engine management. By measuring intake air pressure and communicating this information to the engine control unit (ECU), it helps to optimize combustion in the engine, increasing performance and reducing fuel consumption. Therefore, it is important to properly maintain this component and replace it in the event of failure to ensure your vehicle runs smoothly.
